Engineered to international specifications, our high-volume production capabilities supply infrastructure and commercial projects globally.
Sinsun Hardware, established in 2006, stands at the absolute vanguard of industrial fastener design, OEM production, and complex global logistics. As Northern China's largest specialized producer of Self-Tapping Screws, Rack Mount Cage Nuts, and customized infrastructure fasteners, we operate from a massive 30,000 sqm integrated facility.
Equipped with advanced German-imported multi-station cold heading machinery and precision Taiwanese processing lines, our production capability yields over 36,000 tons of high-strength fasteners annually. We manage a fully digitized 12,000 sqm smart warehouse housing 18,000+ pallet capacity, delivering over 8,500 shipping containers yearly to mission-critical hardware partners across North America, Europe, the Middle East, Southeast Asia, South America, and Russia.
In high-density server racking environments, stability, ease of reconfiguration, and load-bearing safety are paramount. The M5 cage nut, characterized by a spring steel wing cage housing a threaded nut, provides standard mounting options for square-holed 19-inch racks. While historically M6 cage nuts dominated legacy server designs, modern high-density networking arrays, localized IoT hubs, and custom telecom racks increasingly utilize M5 standard threads to optimize clearance profiles and distribute high structural loads across specialized hardware enclosures.
Sinsun’s OEM M5 cage nuts are designed to handle static shear loads exceeding 2.5kN, ensuring heavy-duty virtualization servers remain locked, even under seismic vibrations.
Constructed of premium hardened spring carbon steel, Sinsun’s cages guarantee elasticity, allowing repeated clip-in and removal actions without losing structural retention.
Manufactured to strict DIN 508 and EIA-310 standards, providing seamless compatibility with HP, Dell, IBM, and APC server enclosures globally.
Sinsun Hardware manufactures M5 cage nuts using a rigorous dual-material metallurgy framework. The cage (or leaf spring housing) is cold-formed from high-elasticity C67S or C75S spring steel, ensuring the cage wings compress smoothly during installation and lock securely within square rail punchings (ranging from 9.5mm x 9.5mm to 10.5mm x 10.5mm). The internal square nut is cold-forged using premium Ansteel carbon steel C1022A or high-grade SUS304/SUS316 stainless steel to eliminate stripping under high torque.
| Property Parameter | Carbon Steel Configuration (Zinc Plated) | Stainless Steel Configuration (SS304 / SS316) |
|---|---|---|
| Tensile Strength | 1,000+ MPa | 850 - 950 MPa |
| Hardness Range | HRC 28 - 32 (Core Hardness) | HRB 80 - 90 |
| Corrosion Resistance | Salt Spray Test (NSS): 240 to 1,000+ Hours | Acidic Salt Spray (ASS): 1,500+ Hours |
| Dimensional Accuracy | ±0.02 mm on thread pitch and alignment | ±0.01 mm for aerospace-grade applications |
A chronological trajectory of expansion, technical modernization, and global alignment.
Sinsun Hardware begins operations in Northern China with a core focus on localized industrial fastener distribution and small-scale cold heading.
Establishing direct foreign trade divisions. Annual shipping volumes exceed 1,500 containers, matching Middle Eastern and Southeast Asian construction demands.
Importing German multi-station forming machinery and Taiwanese threading lines, integrating digital SPC systems into the raw material processing flow.
Annual production reaches 36,000 tons. Integrating 4 high-capacity heat treatment lines and fully automated 12,000 sqm smart warehousing managed by customized ERP solutions.
Sinsun Hardware manages a total control pipeline starting from raw hot-rolled coils of wire rod down to the packaged crate. Every batch of M5 cage nuts undergoes a strictly controlled 12-step validation process, ensuring zero-defect output. By pairing German heading equipment with Taiwanese secondary tooling, we maintain an operating efficiency exceeding 1,200 parts per minute while maintaining dimensional integrity.
We source raw coils from top domestic steel producers (Ansteel, Xingtai Steel). Spheroidizing annealing ensures optimal microstructures for cold extrusion.
German multi-station tooling presses create the rough profile of the square nut, achieving close-tolerance geometries with minimal material waste.
Utilizing four dedicated gas-fired continuous mesh belt furnaces, we precisely control tempering times, achieving a consistent core hardness of HRC 28-32.
Surface finishing processes include acid pickling, electro-galvanizing, nickel-plating, and advanced Dacromet coat applications, guaranteeing extreme rust prevention.
We conduct automated optical sorting, thread-go-no-go checks, pull-out load testing, and salt spray test sweeps in our state-of-the-art laboratory.
M5 cage nuts are automatically packed into customized OEM cartons, palletized, and stored in our 12,000 sqm smart warehouse for immediate shipping.
Sinsun Hardware isn't simply an exporter; we act as a strategic engineering partner for global enterprises. We provide vertically integrated supply chain security designed to buffer global distributors and tier-1 infrastructure developers from volatility.
Whether you require extended cage profiles for extra-thick rack rails (above 3.2mm) or specialized grounding cage nuts that scrape through painted rack coatings to ensure electrical grounding, our engineering team collaborates with you on CAD designs and produces 3D printed samples within 48 hours.
By leveraging real-time inventory management synced directly to our 18,000+ pallet facility, we ensure that contract buyers maintain constant replenishment pipelines. This system dynamically tracks ocean freight, customs clearances, and warehouse allocations to guarantee an on-time shipping rate of 99.2%.
Real-world engineering applications of Sinsun high-performance fastening solutions.
Challenge: A tier-1 automotive supplier required specialized flange fasteners capable of resisting dynamic engine vibrations while cutting down component weight.
Sinsun Solution: We redesigned the flange geometry using high-strength C1022A alloy steel alongside localized heat treatment to increase structural fatigue resistance.
Result: Achieved a 15% reduction in overall bolt weight, passed rigorous 2,000-hour vibrational stress testing, and achieved seamless integration on automated assembly lines.
Challenge: A marine structural integrator required fasteners capable of withstanding extreme saline environments without degradation for 10+ years.
Sinsun Solution: Recommended custom duplex stainless-steel fasteners combined with an advanced electroplated passivation surface coat.
Result: Zero documented structural failures over a five-year deployment, maintaining mechanical load ratings and exceeding standard life cycle projections.
Modern procurement demands strict adherence to regulatory standards. Sinsun Hardware integrates environmental responsibility and quality assurance directly into its corporate roadmap. Our M5 cage nuts and wider fastener lines comply with RoHS directive 2011/65/EU and REACH regulations, protecting both end-users and the global environment from hazardous elements like hexavalent chromium, lead, and cadmium.
To support our clients across the Middle East, South America, Europe, and Russia, we maintain dedicated multi-language commercial support centers. Our legal and logistics teams offer comprehensive support with documentation, customs clearing, and localized import compliance, easing the path for hassle-free port deliveries.
Get professional, direct answers regarding specifications, OEM options, and volume orders.
Our standard manufacturing run is optimized for high volumes. For standard catalog M5 cage nuts, our typical MOQ starts at 50,000 units. For custom tooling projects, special coatings, or specific dimensions, we support trial orders starting at 10,000 units to allow for product qualification.
Yes. Our engineering division works with standard 2D and 3D formats (such as .DWG, .DXF, .STEP, and .IGS). We run structural simulations and provide physical 3D-printed prototypes or initial forged samples for mechanical validation before starting mass production.
We trace every single manufacturing batch back to its raw material source. Each batch is assigned a unique tracking number linked to the chemical analysis certificate of the wire coils, heat treatment oven charts, and final laboratory quality reports. We keep reference samples from every shipment for up to 3 years.
For standard stocked items, goods can be dispatched within 7-10 business days. For high-volume manufacturing orders requiring custom stamping or plating, standard lead times run between 4 to 6 weeks. Exact shipping terms are confirmed during quotation.
We supply bright yellow zinc, blue/white zinc plating, and nickel plating. For racks needing high electrical conductivity to the cabinet chassis, we provide clean, unpainted zinc options. For maximum corrosion resistance in highly humid datacenters, we recommend stainless steel or specialized organic coatings.

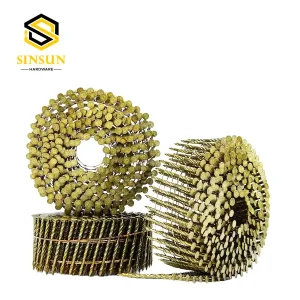

From industrial screws to heavy-duty building nails, explore our top global export products.
Partner with Northern China’s premier hardware exporter. Get high-quality engineering advice, custom product designs, and a competitive quotation for your project.
