🔩 Product Overview

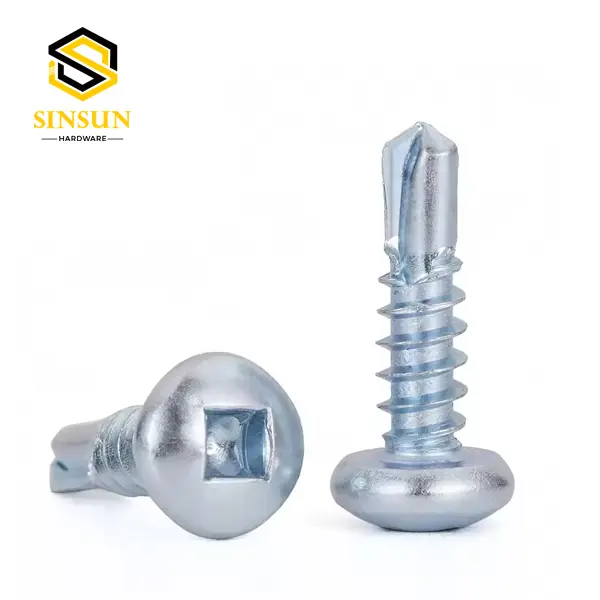

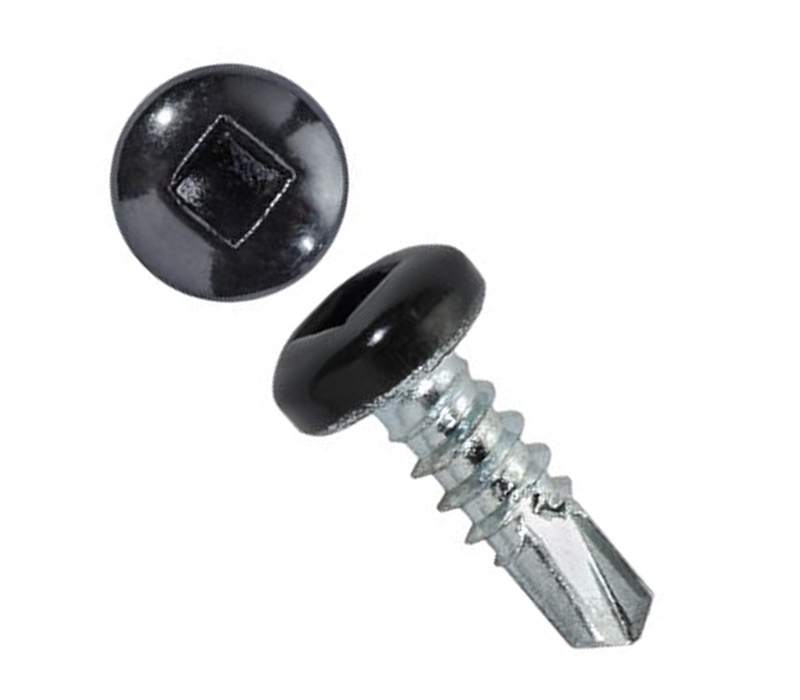

Color Square Drive Pan Head Self-Drilling Screws are specially engineered fasteners that combine a vibrant colored finish with a self-drilling tip, eliminating the need for pre-drilling. Ideal for metal-to-metal and metal-to-wood applications, these screws offer both functional performance and aesthetic appeal.
🎨 Available Color Options
Our color square drive pan head self-drilling screws are available in a broad spectrum of standard and custom RAL colors to perfectly match your project requirements:
Anthracite Grey
Slate Blue
Brick Red
Forest Green
Cream White
Charcoal Black
Terracotta
Silver Grey
Custom RAL Colors
❓ Frequently Asked Questions (FAQ)
❓What materials can color square drive pan head self-drilling screws be used on?
These screws are designed for use on light gauge steel, aluminum, timber, and composite materials. The self-drilling tip allows them to penetrate metal substrates up to a specified thickness without requiring a pre-drilled pilot hole, making them highly versatile for roofing, cladding, and structural applications.
❓How durable is the color coating on these screws?
The color coating is applied using a high-quality, weather-resistant paint or powder-coat process that is engineered to withstand UV exposure, moisture, salt spray, and temperature extremes. The coating is matched to standard RAL color systems and is designed to maintain color consistency throughout the service life of the building.
❓What is the advantage of a square drive over a Phillips drive for self-drilling screws?
A square drive (Robertson) provides a much tighter fit between the screw bit and the recess, which significantly reduces cam-out — the tendency of the driver to slip out under torque. This results in faster, more controlled installation, less surface damage, and reduced wear on both the screw head and the driver bit, especially important in high-volume applications.
❓Are custom colors available for these self-drilling screws?
Yes. In addition to a wide range of standard RAL colors, custom color matching is available for larger orders. Simply provide the required RAL code or a physical color sample to obtain screws that closely match the specified color for a seamless finish on your project.
❓What sizes and lengths are available for these screws?
Color square drive pan head self-drilling screws are available in a variety of diameters and lengths to suit different material thicknesses and application requirements. Common sizes range from #8 to #14 in diameter, with lengths typically starting from 16mm up to 100mm or more. Please refer to product specifications for tailored recommendations.
❓Do these screws require any special tools for installation?
No special tools are required. A standard power drill or impact driver fitted with the appropriate square drive bit (typically #2 or #3 Robertson bit) is all that is needed. It is recommended to set the drill to a controlled torque setting to avoid over-driving the screw and damaging the color coating or the substrate material.
