📐 Wood Screw Technical Drawing
The technical drawing below illustrates the precise dimensions and structural specifications of our wood screw, providing a clear reference for engineers, procurement teams, and end users.

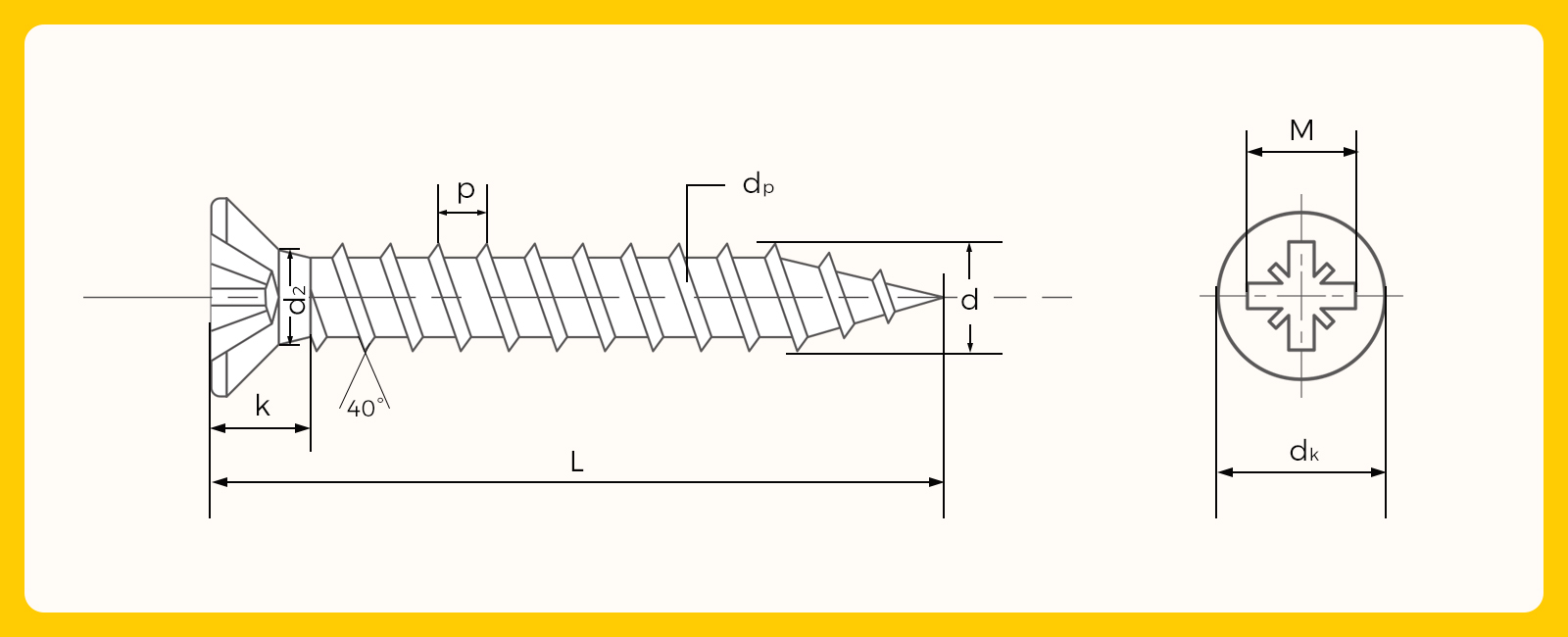

Fig. 1 — Wood Screw Dimensional Drawing
💡
Note: All dimensions shown in the drawing conform to standard manufacturing tolerances. Custom sizes are available upon request.
❓ Frequently Asked Questions
Q
What is a wood screw and how does it differ from other screws?
A wood screw is specifically designed for fastening into wood. It features a tapered shank, a sharp point, and coarse threads that provide excellent grip in wood fibers. Unlike machine screws, wood screws do not require a nut or pre-tapped hole — they cut their own thread as they are driven in.
Q
What materials are wood screws typically made from?
Wood screws are commonly manufactured from carbon steel, stainless steel (304 or 316 grade), and brass. Carbon steel screws are often zinc-plated or galvanized for corrosion resistance, while stainless steel screws are ideal for outdoor or marine environments.
Q
Do I need to pre-drill a hole before using a wood screw?
For hardwoods or when working near the edge of a board, pre-drilling a pilot hole is strongly recommended to prevent the wood from splitting. For softer woods, many wood screws can be driven directly without pre-drilling, especially those with self-drilling or sharp-point designs.
Q
How do I choose the right size wood screw for my project?
The screw length should be approximately 2–3 times the thickness of the material being fastened. The diameter should be chosen based on the load requirements and the type of wood. Refer to the technical drawing and specification table above for detailed dimensional guidance.
Q
What surface finishes are available for wood screws?
Common surface finishes include zinc plating (electro-galvanized), hot-dip galvanizing, black oxide, and plain (uncoated). Stainless steel screws are also available for environments with high moisture or chemical exposure. The choice of finish affects both corrosion resistance and appearance.
Q
Can wood screws be used for outdoor applications?
Yes. For outdoor use, it is recommended to select wood screws with hot-dip galvanized coating or made from stainless steel (304 or 316) to ensure long-term corrosion resistance. Using screws with inadequate protection in outdoor environments can lead to rust and structural failure over time.
