Frequently Asked Questions
🔩

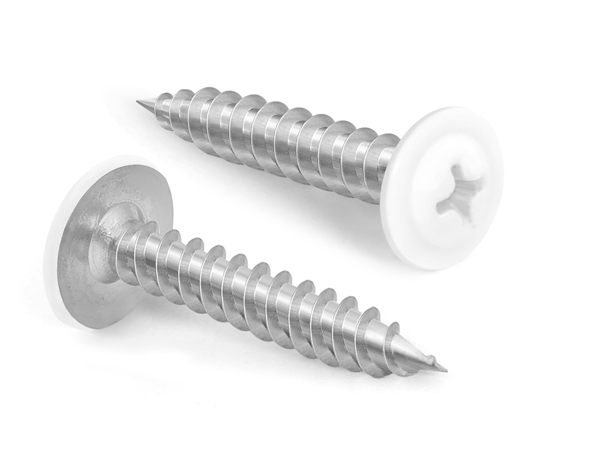

What are truss head self-tapping screws?
Truss head self-tapping screws are fasteners with a wide, low-profile domed head and a sharp-threaded shank that can create their own mating thread as they are driven into materials such as metal, plastic, or wood — without requiring a pre-tapped hole.
🔩
What is the advantage of a truss head design compared to other head types?
The truss head features a wider bearing surface than pan or round heads, which distributes clamping load over a larger area. This makes it ideal for use with oversized holes, soft materials, or thin sheet metal where pull-through resistance is important.
🔩
What materials are truss head self-tapping screws typically made from?
They are commonly manufactured from carbon steel, stainless steel (304 or 316), or zinc alloy. Surface treatments such as zinc plating, black oxide, or nickel plating are often applied to enhance corrosion resistance and appearance.
🔩
What drive types are available for truss head self-tapping screws?
Truss head self-tapping screws are available in a variety of drive styles including Phillips (cross), slotted, combination, square (Robertson), and Torx (star) drives, allowing flexibility for different installation tools and torque requirements.
🔩
What are the typical applications for truss head self-tapping screws?
These screws are widely used in electronics enclosures, HVAC ductwork, automotive trim panels, sheet metal assemblies, plastic housings, and light-gauge metal fabrication where a low-profile yet wide-bearing fastener is required.
🔩
How do I choose the correct size of truss head self-tapping screw for my project?
Selection depends on the thickness and hardness of the material being fastened, the required clamping force, and the size of the pilot hole. Generally, the pilot hole diameter should be slightly smaller than the screw's major thread diameter to ensure proper thread engagement and holding strength.
