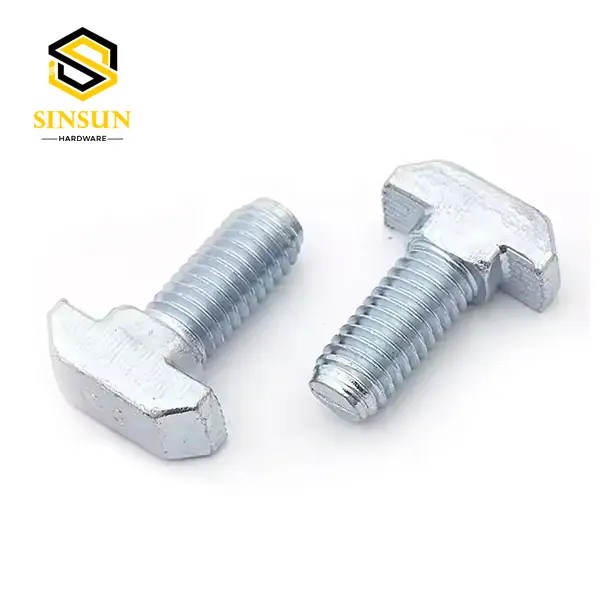

ODM T Bolts Manufacturer, Supplier

Thread Size (Metric) Thread Size (Imperial) Slot Width Head Width (A) Head Height (H) Max Length (Partial Thread) Grade Available Finish Options
M4 6 mm 5.6 mm 3.2 mm 50 mm 8.8 Black Oxide, Zinc
M6 8 mm 7.8 mm 4.5 mm 120 mm 8.8, 10.9 Black Oxide, Zinc, Nickel
M8 5/16"-18 10 mm 9.8 mm 5.5 mm 150 mm 8.8, 10.9, 12.9 All
M10 3/8"-16 12 mm 11.8 mm 7.0 mm 200 mm 8.8, 10.9, 12.9 All
M12 1/2"-13 14 mm 14.0 mm 8.0 mm 250 mm 8.8, 10.9, 12.9, B7 All
M16 5/8"-11 18 mm 18.0 mm 10.5 mm 300 mm 10.9, 12.9, B7 All
M20 3/4"-10 22 mm 22.0 mm 13.0 mm 350 mm 10.9, 12.9 Black Oxide, HDG
M24 1"-8 28 mm 27.5 mm 15.0 mm 350 mm 10.9, 12.9 Black Oxide, HDG
M30 1-1/4"-7 36 mm 35.0 mm 18.0 mm Custom 8.8, 10.9 HDG, Epoxy
M48 50 mm 48.0 mm 25.0 mm Custom 8.8 HDG, Epoxy

Product Description

Related Products

Shoulder Bolts
01

Shoulder Bolts

Carriage Bolts
02

Carriage Bolts

u bolt
03

u bolt

Eye Bolts
04

Eye Bolts

Stud Bolts
05

Stud Bolts

J Bolts
06

J Bolts

Frequently Asked Questions

QWhat is the main purpose of a Shoulder Bolt?

Shoulder bolts feature an unthreaded shoulder that allows for the rotation or sliding of matching parts, making them ideal for pivot points, guiding shafts, and mechanical joint linkages.

QWhen should Carriage Bolts be used?

Carriage bolts are designed with a domed head and a square neck underneath. They are commonly used to fasten wood to wood or wood to metal, preventing the bolt from turning once tightened.

QWhat are U-bolts typically used for?

U-bolts are curved fasteners shaped like the letter U, primarily used to support and secure piping, tubes, and other cylindrical objects to fixed structures.

QHow do Eye Bolts function in industrial operations?

Eye bolts have a looped head designed to secure cables, ropes, or shackles, allowing them to act as connection points for lifting, rigging, and anchoring applications.

QWhat makes Stud Bolts different from other fasteners?

Stud bolts are threaded rods without a head, designed to accept nuts at both ends. They are widely used in high-pressure flange connections, pipelines, and automotive assemblies.

QWhere are J-bolts commonly applied?

J-bolts feature a hooked shape, making them ideal for casting directly into concrete foundations to serve as secure anchors for structural columns and heavy equipment.
